Overview
Spex Stylo Head Support
Spex stylo head support
Stylo 260 is engineered to offer ultimate and unparalleled adjustability to meet the most complex head positioning needs! With simple adjustment and intuitive design, it brings simplicity to the most complex of cases.
Similar to Stylo 160, clever use of twin ball joints means the head pad can be orientated to where the optimal support is required, through an available 45° of pitch; coupled with two hinge joints that offer infinite up and down, and forward and backward adjustment. In addition, it offers incredible reach with length-adjustable links. Available in flip-back option for ease of transfers.
The Stylo Head Support is transport approved.
Specifications
| Code | 1274-1282-000 |
| Flip-back code | 1274-2282-000 |

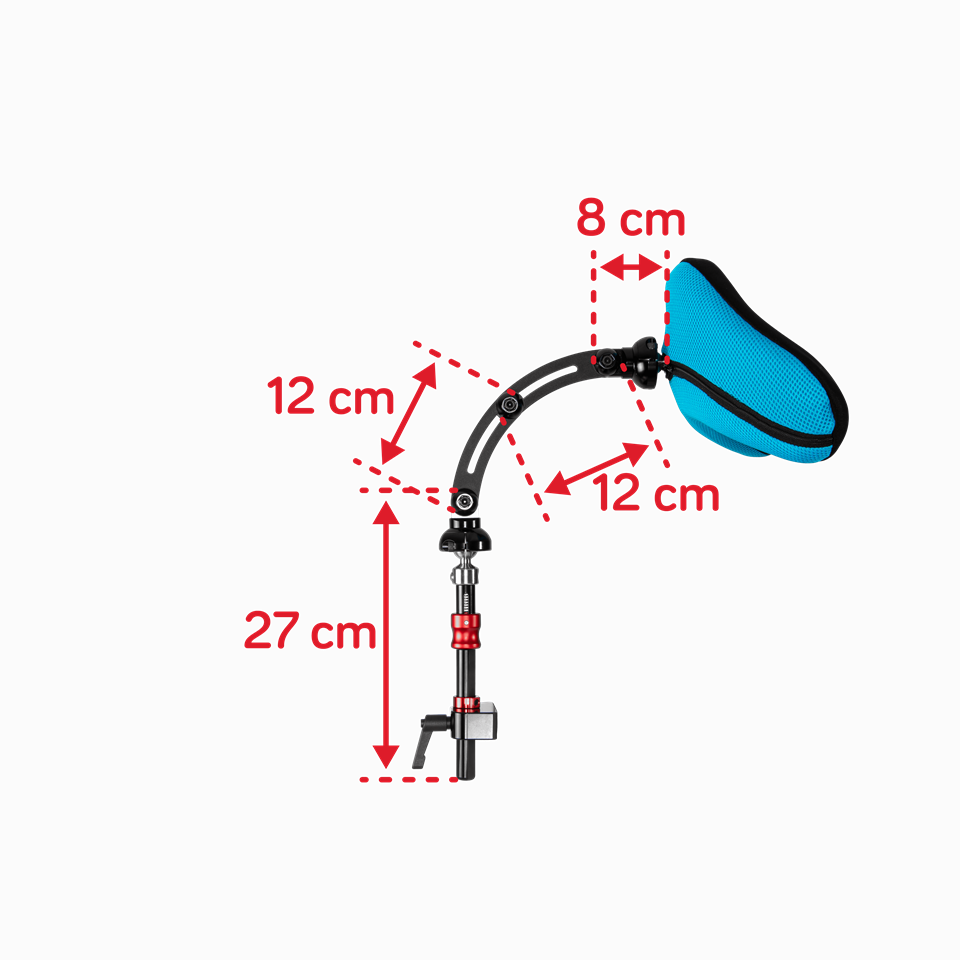

| Horizontal forward adjustment | 260 mm |
| Vertical adjustment in mechanism | 160 mm |
| Vertical adjustment in stem | 145 mm |
| 80 mm for Flip-back | |
| Sideways adjustment | 250 mm |
| Pitch | 45° of head support pad in all directions within the ball joint. The ball joint is also on a hinge which offers an additional 180° in up and down angle! |
| Weight of stylo stem | 830 grams |
Features
- The Stylo 260 provides exceptional adjustability for complex head positioning with intuitive controls.
- Twin ball joints allow for a 45° pitch, while two hinge joints enable infinite vertical and horizontal adjustments.
- Length-adjustable links offer optimal reach
- It is transport approved and features a flip-back option for easy transfers.
Media
Frequently Asked Questions
Q: How adjustable is the Stylo 260 Head Support?
A: The Stylo 260 offers extensive adjustability, including 45° of pitch through twin ball joints and infinite adjustments for up/down and forward/backward positioning via hinge joints.
Q: Does the Stylo 260 provide sufficient reach for head positioning?
A: Yes, the Stylo 260 features length-adjustable links, offering excellent reach to position the head support precisely where it's needed.
Q: Is the Stylo 260 suitable for transfers and travel?
A: The Stylo 260 is available in a flip-back option for easy transfers and is also transport approved for safe travel.
